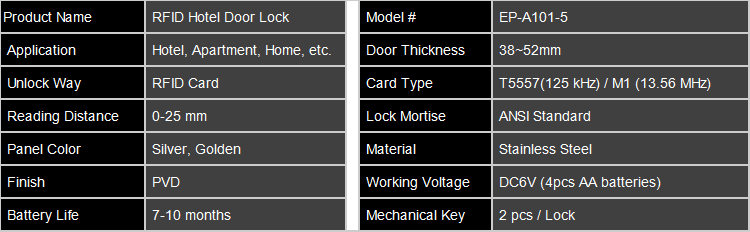

RFID Card Reader Digi Keyless Hotel Room Door Lock System
- Unlock Way
- RFID Card
- Card Type
- T5557(125 kHz) / M1 (13.56 MHz)
- Lock Mortise
- ANSI Standard
- Working Voltage
- DC6V (4pcs AA batteries)
- Mechanical Key
- 2 pcs / Lock
- Door Thickness

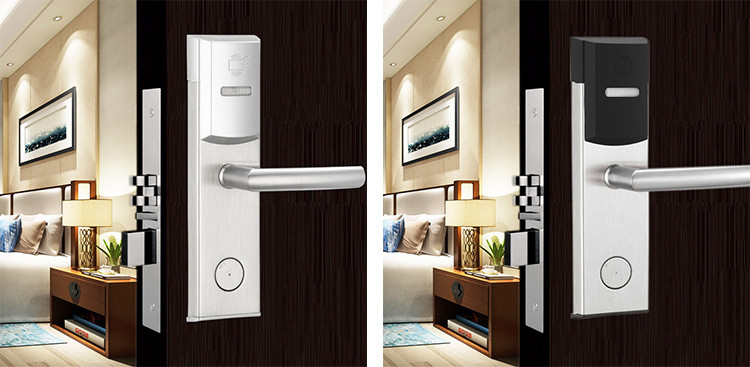

1. Hotel Door Lock -- 1 piece for each door.
2. Key Card Encoder -- 1 piece for each project. Used to program key cards and configure locks.
3. RFID Key Card -- 3 to 5 pieces for each lock. Used to unlock and for lock managing.
4. Management Software -- Provided by us for free
1. Energy Saving Switch -- 1 piece / room. Insert key card to gain power, take it out to cut off power, save powe for hotel.
2. Data Collector -- 1 piece / project. Used to collector door-opening history data (Who/when/how) from the lock.
3. Door Guard Chain -- 1 piece for each door.
>>>>>> Click To Check Detailed Introduction
Inductive Card to Unlock
T5557 125 KHz RFID card or M1 13.56 MHz card. Responding time: 0.3s. Convenient and durable.
Prevent damaging from external hardware. Not only safe, but also good-looking.
4 pcs alkaline AA batteries, last for 7-10 months
Stainless Steel Material
PVD vacuum plating process for the surface, anti-corrosion, not easy to fade, elegant and beautiful.
The handle will be disconnected from the internal part of the hotel rfid lock after door is locked,
which could prevent lockpicking and effectively protecting the mechanical parts of the lock.
If forget to close door or if door is not closed completely, there will be “Di-Di” sound to remind you close it.
After hotel rfid lock is opened and handle is released, the lock will lock itself automatically.
If reading card but not open the door, the lock will lock itself automatically in 6 seconds.
ANSI Standard Mortise
Linked-five-latches structure. Reliable and stable performance.
Prevent people trying to open the door illegally with business cards, ID card, etc.
